Wideband RF and camera detector

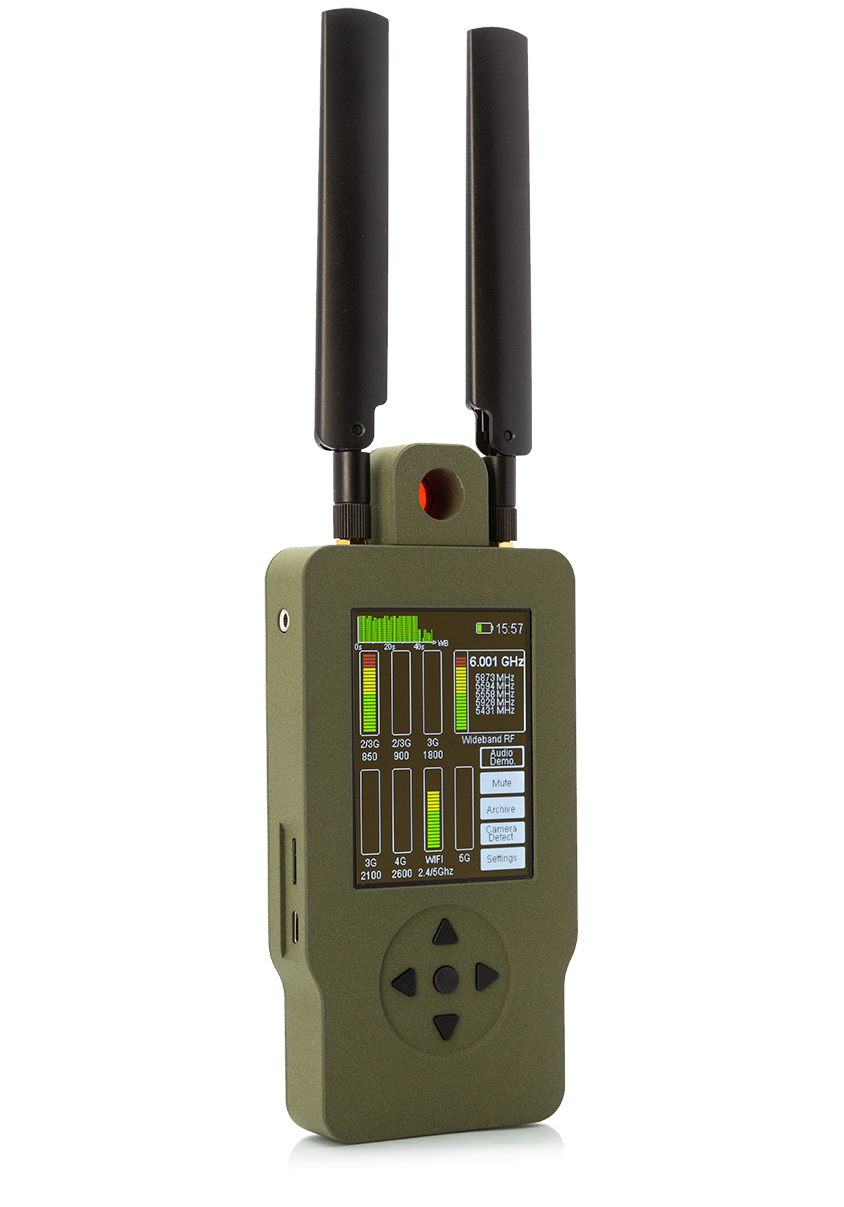

Built to withstand high temperatures and humidity the ruggedly constructed Palladium 21 can lead the operator to a transmission device using the distance measurement tool. This innovatively designed handheld RF and camera detector sweeps areas before high level-meetings and monitors RF activity as the meeting progresses ensuring that the area remains safe. The operator can zoom in and focus on expected threats across the radio frequency bands including GSM, 2G, 3G 4G, 5G, Wi-Fi and Bluetooth using the built-in immunity from RF interference feature.
As well as detecting frequency hopping and spread spectrum systems the unit can detect low power transmitters even when higher power transmitters are operating nearby. This function is enabled through five auto-selected filters. The detector automatically selects the correct antenna for the frequency, and the RF band sensitivity controls can be individually set manually or automatically.
Detection capability:
All RF transmitters (encrypted, frequency hopping, spread spectrum; cell phone frequencies)(voice: 800, 1900, 3G, 4G), (data: GPRS, Wi-fi 2.4 GHz, 5.5 GHz and Bluetooth).
Frequency range:10 MHz – 10 GHZ
Input impedance: 50 ohms
Sensitivity: -60 dBm (cell phone and Wi-fi)
Camera detection: All camera optics, in use or dormant
Controls: 5 navigation keys and 89 mm high resolution colour TFT screen
Indicators: Internal audio tone and vibration
Power supply: 5 V via USB C or internal rechargeable LiPo battery
Size: 188 mm x 83 mm x 22 mm (h x w x d)
Weight: 423 grams
Operational temperature range: -10 to +65°C
